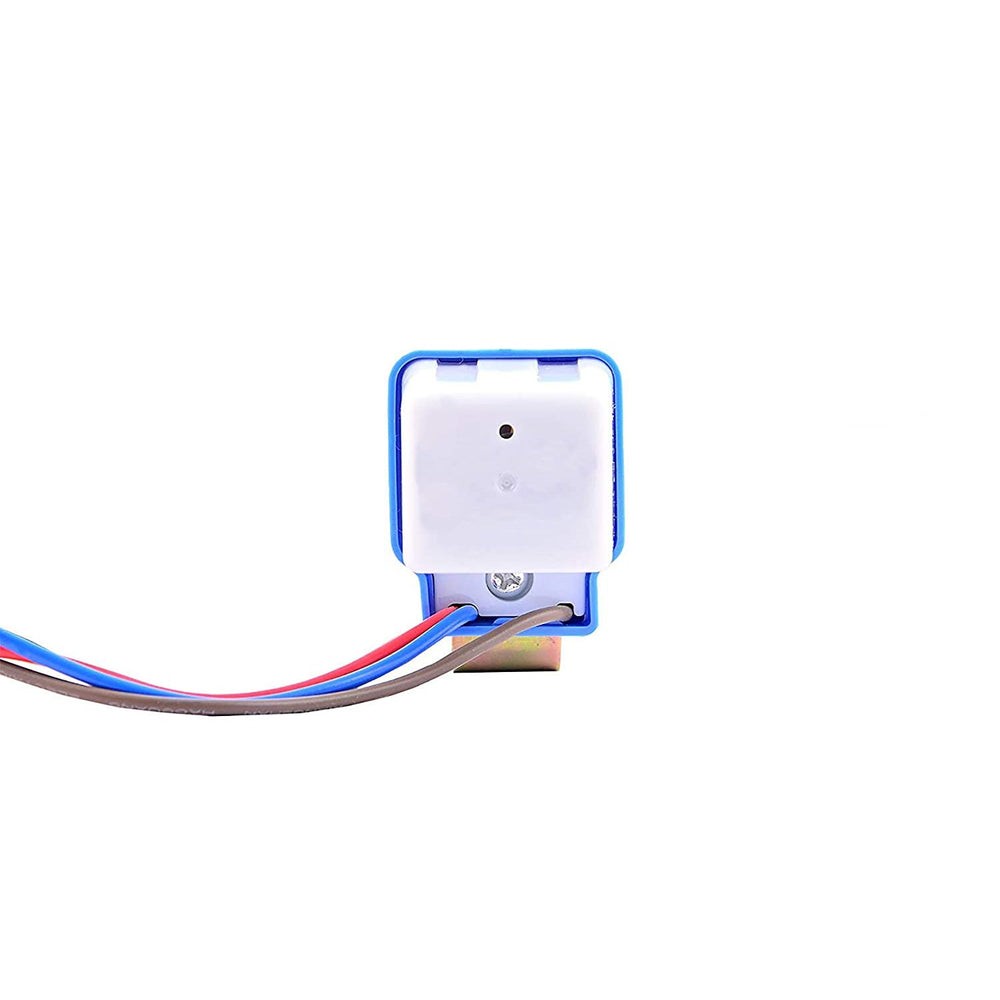

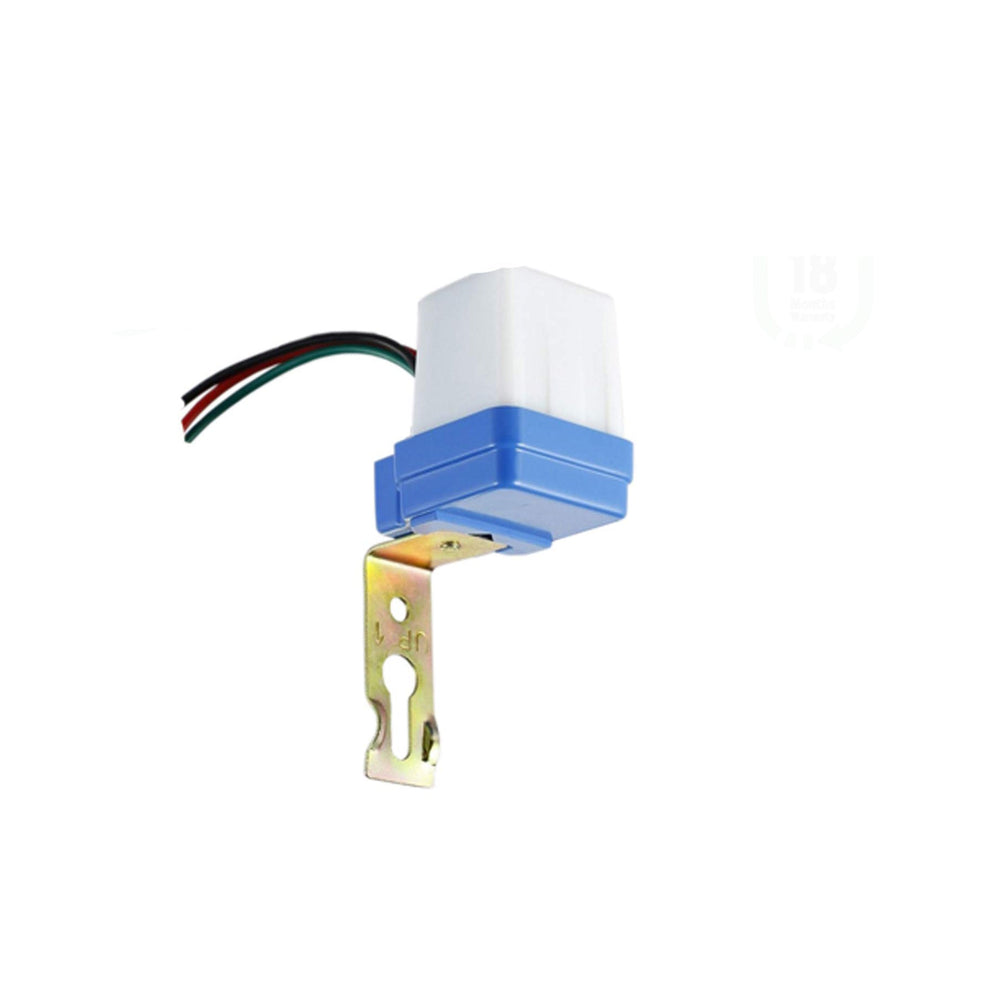

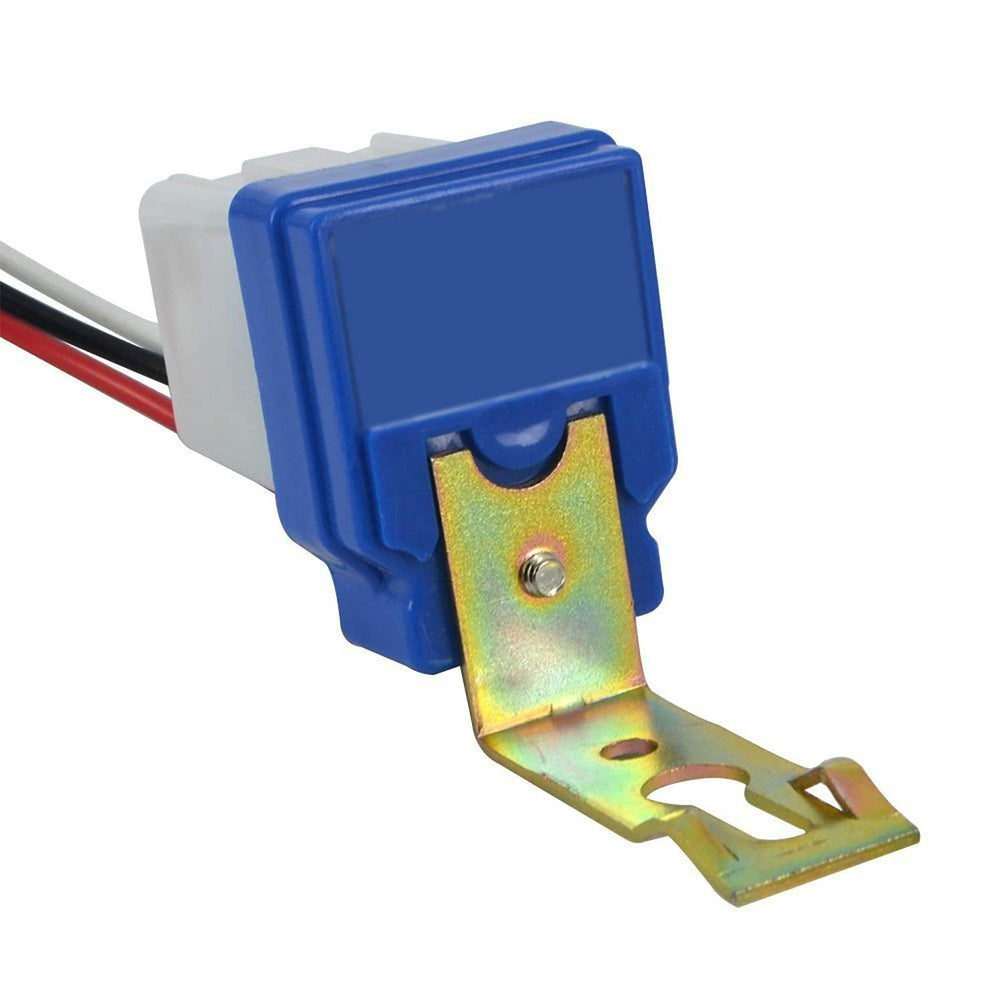

Quick Sense(QS-301): Waterproof 220 V Auto Day/Night on and Off Photocell, LDR Sensor Switch 6 A for Lighting (White)

The product can turn on or turn off light according to ambient-light; Ambient-temperature and humidity can't affect it. It is not only convenient but also practical, it can control the load working only at night. For instance road light, garden light etc. Its also known as Photocell Sensor, Light Sensor, Dusk to dawn sensor, Street light sensor, Day night Sensor, LDR Sensor.

Specification

• 1 Power source:220-240V/AC.
• 2.Rated Current: 6A.
• 3.Ambient Light:5-50LUX.
• 4.Application fields:Street lamp and road light, garden light etc.

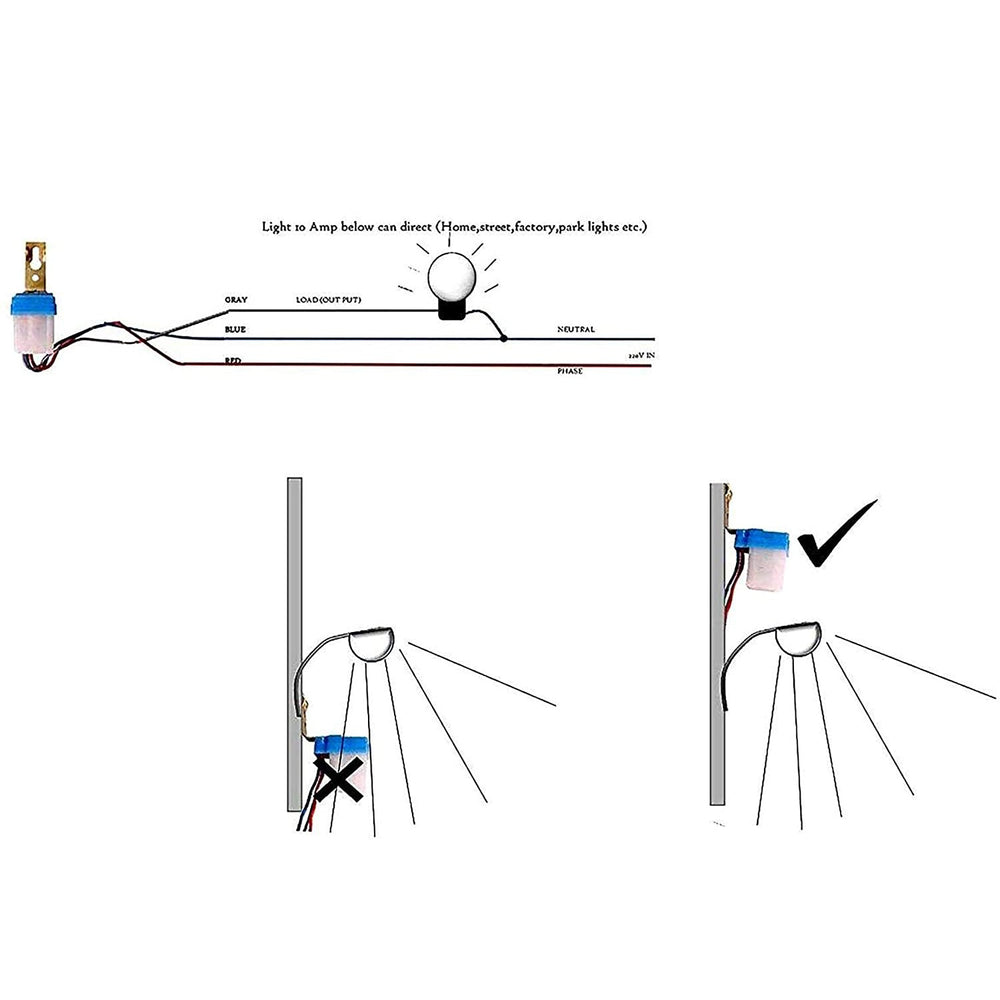

Installation (see the figures)

• Switch off the power, connecting the wire as per the following figure.
• Please install the item with the correct orientation (see figure A) what shows in the metal bracket and according to the correct installation place with the enclosed inflated screws.
